::: Products Profile :::

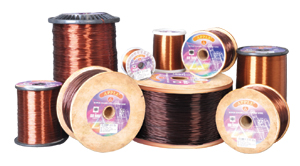

Super Enamelled Copper winding wires / Magnet wire
  INSULATION CLASS
      Thermal Class     Specification
    Polyester     130°C     IS -13730 Part-45
    Modified Polyester     155°C     IS -13730 Part -03
    Polyesterimide     180°C     IS - 13730 Part-08
    Dual coated (PEI+PAI)     200°C     IS-13730 Part-13
    Self Solderable     155°C & 180°C     IS -13730 Part-20 &23

  QUALITY APPROVALS / TESTS
PHYSICAL
MECHANICAL
ELECTRICAL
THERMAL
CHEMICAL
   Visual Appearance    Elongation    Electrical Resistance    Heat- shock Test    Solvent Test
   Surface Smoothness    Springiness / Peel test    Break Down Voltage    Cut through Test    Solder Test
   Dimensions    Flexibility & Adherence    Continuity of Covering    Thermal Endurance Test    Resistance to Transformer Oil
     Resistance to Abrasion
   & Jerk test
   Dielectric Loss Tangent
   (Tan Delta Test)
   High Temp* Failure Test    Freon Bomb Test
  SPECIFICATION / STANDARDS
  IS, IES, DIN and other international standards & as per customer norms.

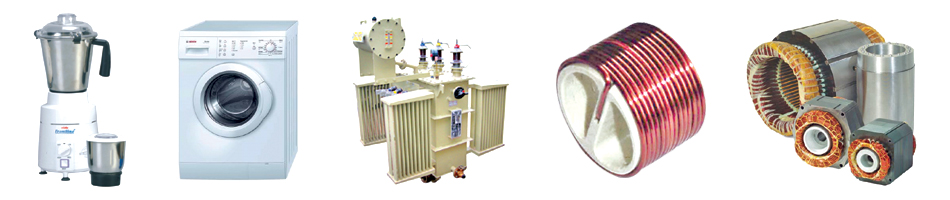

  APPLICATIONS
  Electrical Motors, Transformers, Switch Gears, Auto electrical, Refrigerator, Air Conditioner, Domestic appliances, Pump & fans.
